Spacer

Spacer

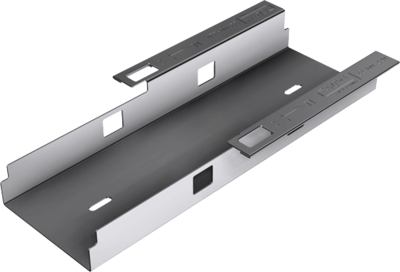

The SL Fast Flat spacer is the perfect solution for optimising the PV module array and minimizing shading in south-facing systems. With three standard lengths (220 mm, 390 mm and 700 mm), it offers maximum flexibility: The shortest piece (220 mm) can be used as a maintenance aisle in an east-west system, while the larger variants (390 mm and 700 mm) have been specially designed for use in south-facing systems to reduce shading and maximise power production. All parts are manufactured from rugged galvanized steel (ZM430) for a long service life and weather resistance. The spacer can also be used to attach the wind deflector, providing a multi-functional solution for a variety of PV applications.

Fast Flat - Spacer 220 mm, item no. 22300-220
Fast Flat - Spacer 390 mm, item no. 22300-390
Fast Flat - Spacer 700 mm, item no. 22300-700

Keyfacts

Can be used as a maintenance aisle (220 mm or 390 mm) in an east-west system.
Can be used to mount a wind deflector.
Can be used as a spacer (390 mm or 700 mm) to reduce shading of modules in a south-facing system.
Pre-set spacing for ease of design and installation.
Dimensions: Length 220 mm, width 105 mm, height 30 mm
Length 390 mm, width 105 mm, height 30 mm
Length 700 mm, width 105 mm, height 30 mm
Material: Galvanized steel ZM430
Weight: 220 mm 0.22 kg, 390 mm 0.33 kg, 700 mm 0.75 kg

Advantages

Optimum use of space due to reduced shading.
Multifunctional use as a maintenance aisle or a spacer.
Quick and easy to install due to pre-defined lengths and a simple click system.
High quality sheet steel for durability and weather resistance.
Various spacers allow flexible compliance with minimum distance to obstructions.
