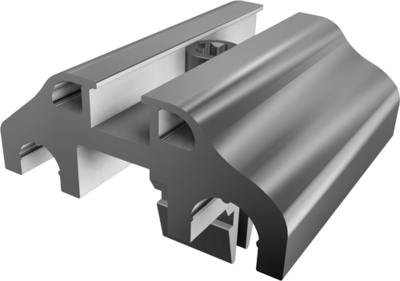

Lightning Protection Clamp Top

The Lightning Protection Clamp is specially designed for a connection to external lightning protection systems and for potential equalisation in PV systems. Certified to DIN EN 62561, it provides tested and reliable lightning protection performance, ideal for protecting PV module arrays and for integration into existing lightning protection concepts. The clamp is made from sturdy aluminium and is equipped with a stainless steel screw (Torx 40), which enables a quick and easy installation. The Lightning Protection Clamp is suitable for 8 and 10 mm diameter lightning protection wires, eliminating the need for additional clamps. Its low height also makes it ideal for modules with a frame height of just 30 mm. The convenient installation from the top simplifies installation and makes the clamp a time-saving solution for designers and installers. The clamp can be safely integrated into the external lightning protection system. This maximises the use of space and provides a high standard of protection for all PV systems.

• Lightning Protection Clamp Top, item no. 91518-00
