Rafter 100

Statically optimized aluminum rafter for maximum load capacity and easy installation.

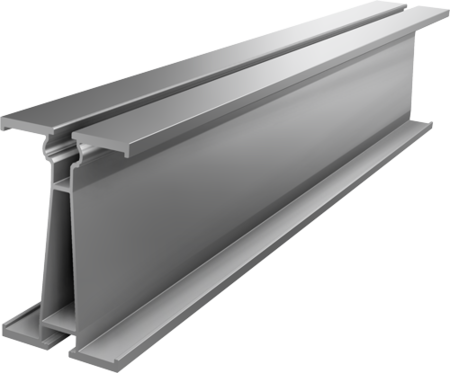

Rafter 100

Rafter 100 is made of high quality aluminum and is optimized for the requirements of modern PV mounting systems. Its structural design ensures maximum stability and load-bearing capacity, while its lightweight construction makes it easy to transport and install. The prefabricated design eliminates the need for additional holes, making installation much easier. The connection to the Z-purlin is made with a special rafter clamp that allows for a safe, precise and fast installation. With its optimized shape, the Rafter 100 provides a reliable base for varying types of PV modules and ensures a stable structure for the long term.

  • Rafter 100, item no. 81410-1000

Key facts

  • Click channel for easy installation of module clamps.
  • No drilling required.
  • Dimensions: Variable length, width 62mm, height 100mm
  • Material: Aluminum
  • Weight: 1.99 kg/m

Advantages

  • Quick and easy installation without drilling due to a precise design.
  • Lightweight construction facilitates transportation and handling.
  • High stability and load capacity through optimized statics.
  • Low maintenance due to durable, corrosion-resistant aluminum.
  • Flexible combination with various PV module types and substructures.

Accessories

W-pile made of special plastic

Show product

W-pile made of steel

Show product

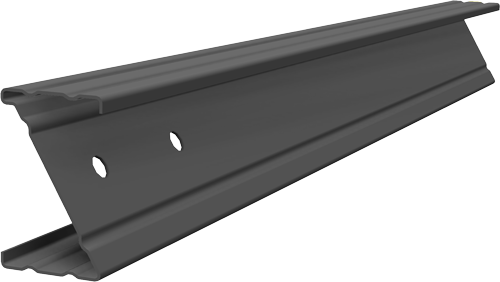

Z-Purlin
