Facade System Bottom, Mid and Top

Facade insertion profiles: Quick to install, versatile and visually appealing.

Facade System Bottom, Mid and Top

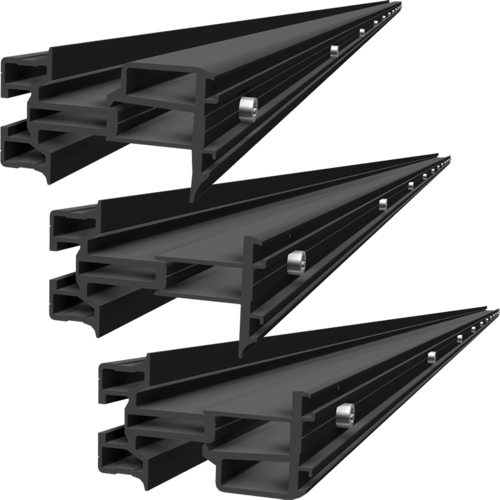

The facade profiles provide a well thought-out substructure for wall mounted solar modules. The system combines two functions in one: first, the modules are placed in the rails - similar to an insertion system - and second, they are securely clamped along the entire length of the profile. With a clamping range of 28-50 mm, the system flexibly adapts to various module sizes. The facade system consists of three completely pre-assembled rails (Facade System "Top", "Middle" and "Bottom"), which makes the installation much easier. The profiles are made of high quality black anodized aluminum and are fastened with stainless steel hardware. Integrated grounding and the easy installation from the top ensure a time-saving and safe installation.

  • Facade System Bottom 1970mm, black anodized,
    Item no. 36121-1790
  • Facade System Bottom 4575mm, black anodized,
    Item no. 36121-4575



  • Facade System Mid 1970mm, black anodized,
    Item no. 36122-1790
  • Facade System Mid  4575mm, black anodized,
    Item no. 36122-4575
  • Facsade System Top 1970mm, black anodized,
    Item no. 36123-1790
  • Facade System Top 4575mm, black anodized,
    Item no. 36123-4575

Key facts

  • Substructure for wall mounted modules, consisting of three completely pre-assembled rails and the required stainless steel hardware.
  • Combined insertion and clamping profile.
  • Clamping range from 28-50 mm.
  • Available in two different lengths.
  • Dimensions: Length 1790/4575 mm, width 50 mm, height 60-82 mm
  • Material: anodized aluminum, stainless steel hardware
  • Color: black
  • Weight: Top profile 1790 mm 4.03 kg, top profile 4575 mm 10.30 kg
                 Mid profile 1790 mm 3.49 kg, mid profile 4575 mm 8.93 kg
                 Bottom profile 1790 mm 3.99 kg, bottom profile 4575 mm 10.21 kg

Your advantages:

  • Quick and easy installation with pre-assembled rails.
  • Reduced warehousing by utilizing only three components.
  • Flexible to accommodate different module sizes and requirements.
  • Safe installation due to integrated grounding.
  • Efficient installation with minimal tool requirements (Torx 40).

Accessories

Facade System Cover

Show product

Facade System End Cap

Show product

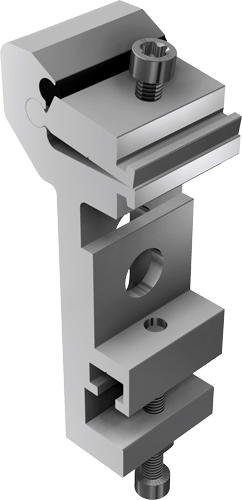

Facade Fastener

Show product

Außenverbinder für alle RAILs

Show product

Stockschraubenaufsatz 2.0

Show product

Kreuzverbinder

Show product
