Girder

Maximum stability and ease of installation - the girder is the central link in a durable ground mount system.

Girder

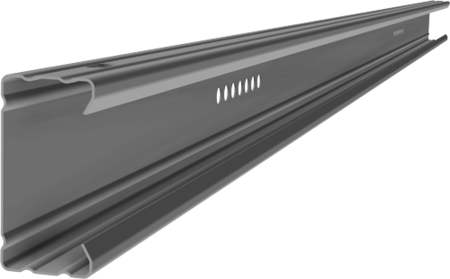

The galvanized steel girder is the central connection between two piles and forms the basis for the rest of the ground mount structure. The sturdy steel construction provides high stability and helps ensure safe mounting of large arrays. Pre-drilled holes allow for a quick and accurate installation, eliminating the need for on-site drilling. Five or ten pre-punched holes allow flexible alignment of the girder, even if the piles are not positioned with millimeter accuracy. Standard ZM430 galvanization protects against corrosion and extends the life span of the component.

  • Steel girder SB 135x62x1,8, item no. 82138-1000
  • Steel girder SB 150x62x1,8, item no. 82158-1000

Key facts

  • Strong connection of two piles for a stable mounting structure.
  • Pre-drilled for a quick and flexible assembly.
  • Easily stackable for efficient transportation and warehousing.
  • Various zinc coatings available depending on site requirements.
  • Optimal base for racks and future expansions.
  • Dimensions: Variable length, width 62mm, height 135 or 150mm
  • Material:Galvanized steel ZM430

Advantages

  • Simplified installation due to precise pre-drilled holes.
  • High installation flexibility, even if piles are slightly out of position.
  • Stability for large PV racks and high snow loads.
  • Optimized for easy and space-saving transportation.
  • Long service life due to high quality corrosion protection.
