W-pile made of steel

Maximum stability with minimum weight - durable W-pile for efficient ground mount systems.

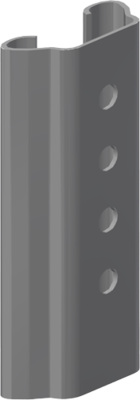

W-pile made of steel

The W-pile made of steel is specially optimized for the use in ground mount systems. The clever design ensures high stability with low material consumption, which makes it easy to handle on site. The pile is driven into the ground with standard pile driving equipment and can be flexibly adapted to different soil conditions due to its variable length. The standard ZM430 galvanization makes the pile corrosion resistant and durable. Installation is facilitated by four pre-drilled holes on the top for easy post alignment and attachment. In addition, the piles can be stacked to save space, which makes them easier to transport and stock.

  • Pile W146, item no. 82914-1000
  • Pile W162, item no. 82916-1000
  • Pile W182, item no. 82918-1000

Key facts

  • Extremely stable construction due to proprietary W-shape.
  • Intelligent design saves weight without sacrificing strength.
  • Flexible pile lengths and heights of W146, W162 and W182 for varying applications.
  • Zinc coating thicknesses can optionally be selected depending on site requirements.
  • High pull-out values reduce the number of foundations required.
  • Dimensions: Variable length, width 146, 162 or 182 mm, height 70 mm
  • Material: Galvanized steel ZM430, 3 mm material thickness
  • Weight: Depending on size of pile

Advantages

  • W-shaped for high stability and reduced material usage.
  • Easy to assemble with pre-drilled holes for accurate alignment.
  • Optimized for fast transport and space-saving warehousing.
  • Flexible adaptation to varying ground conditions and height requirements.
  • High weather resistance with proven galvanization technology.
