Facade Fastener

Perfect facade installation with flexible alignment, pre-assembled and optimal back-ventilation.

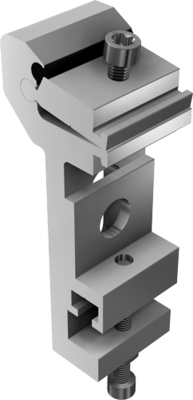

Facade Fastener

Designed specifically for mounting the SL Energy Wall to the facade, the Facade Fastener provides an efficient solution for attachment and alignment. To allow for a quick and easy installation without additional assembly, the Facade Fastener is supplied fully pre-assembled. It attaches to hanger bolts and offers flexible mounting options both upwards and downwards. It allows the profiles to be aligned down to the  millimeter and provides 6 cm of rear-side ventilation. The Facade Fastener is compatible with various thread diameters and is suitable for all facade profiles. It allows for easy adjustment and compensation of wall tolerances, is maintenance free and provides a reliable and durable solution for your wall installation.

  • Fasade Fastener, Item no. 31107-00

Key facts

  • Attachment of the SL Energy Wall to the facade.
  • Installation on hanger bolts or threaded rods.
  • Can be mounted from the top or bottom.
  • Millimeter-precision alignment of profiles.
  • Offers 6 cm of back-side ventilation.
  • Completely pre-assembled.
  • Dimensions: Length 130 mm, width 35, height 43
  • Material: Aluminum, stainless steel hardware
  • Color: aluminum, mill finish
  • Weight: 0.19 kg

Advantages

  • Easy tolerance compensation for an accurate facade installation.
  • Exact adjustment ensures perfect profile alignment.
  • Flexibility due to mounting options in different directions.
  • Effective wall ventilation to protect against moisture.
  • Ready-to-use mounting solutions simplify installation.

Accessories

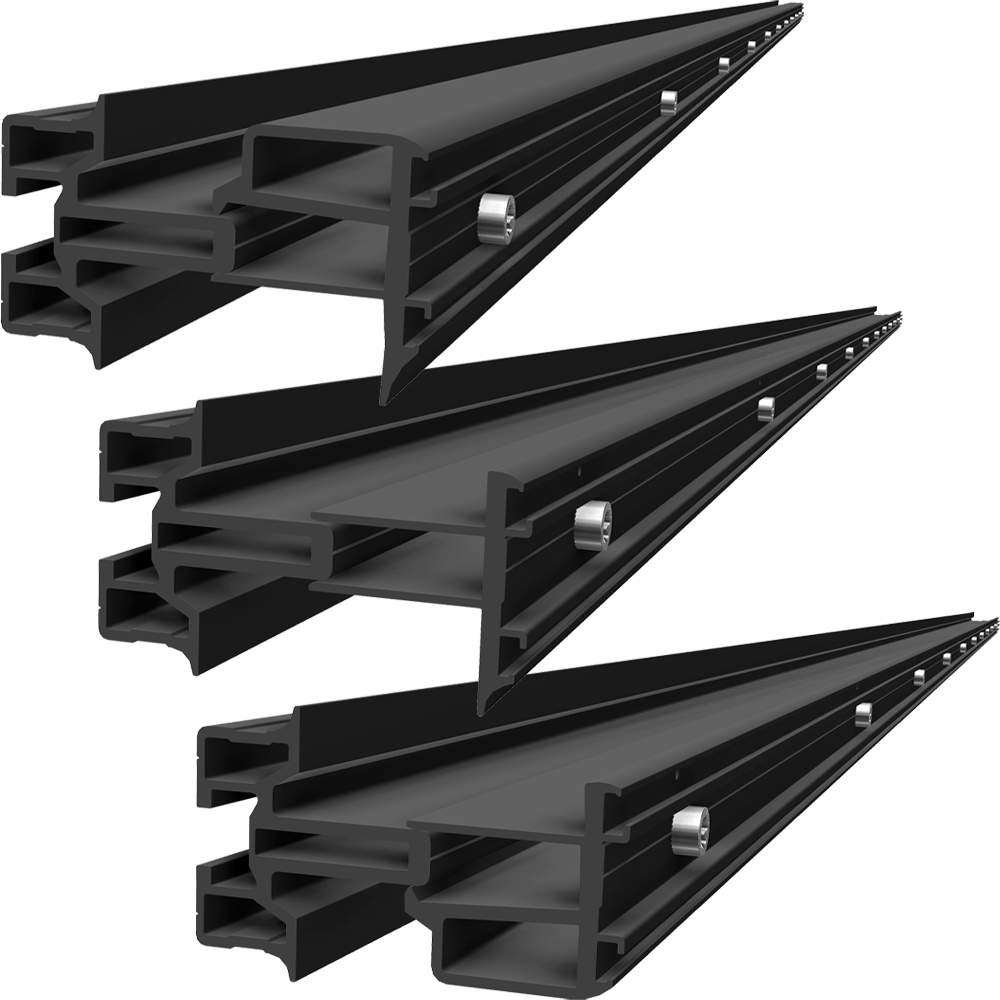

Facade System Bottom, Mid and Top

Show product

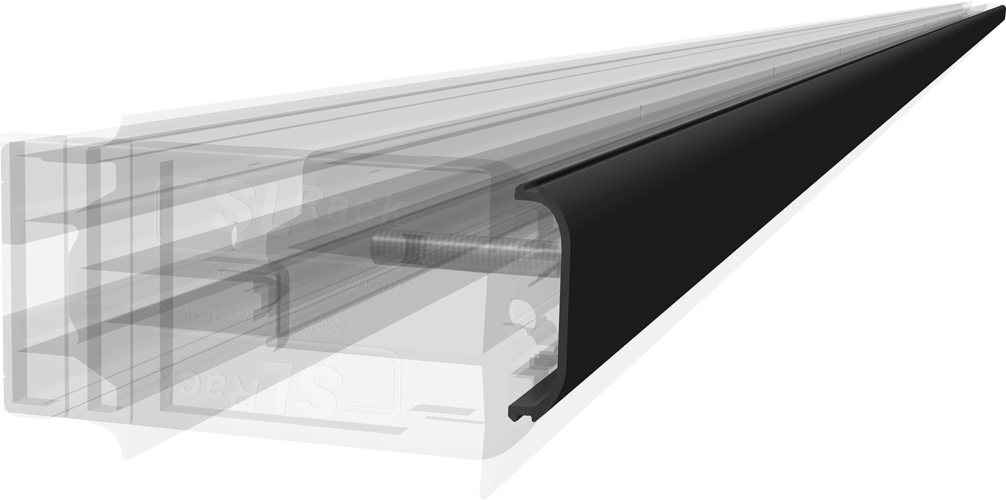

Facade System Cover

Show product

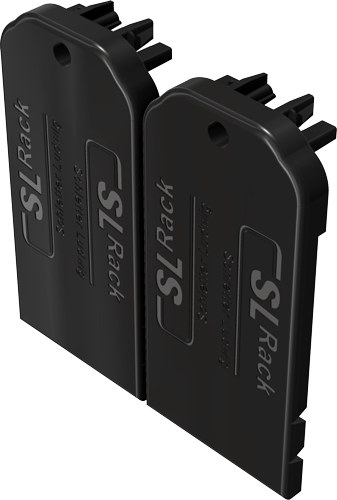

Facade System End Cap

Show product

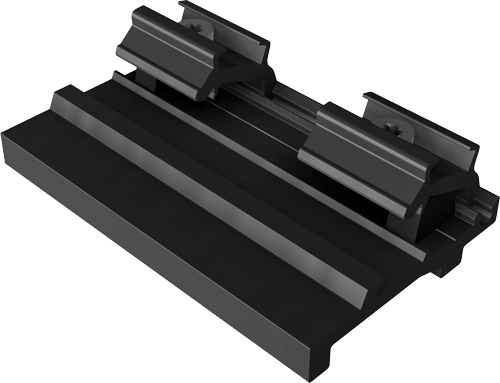

Außenverbinder für alle RAILs

Show product

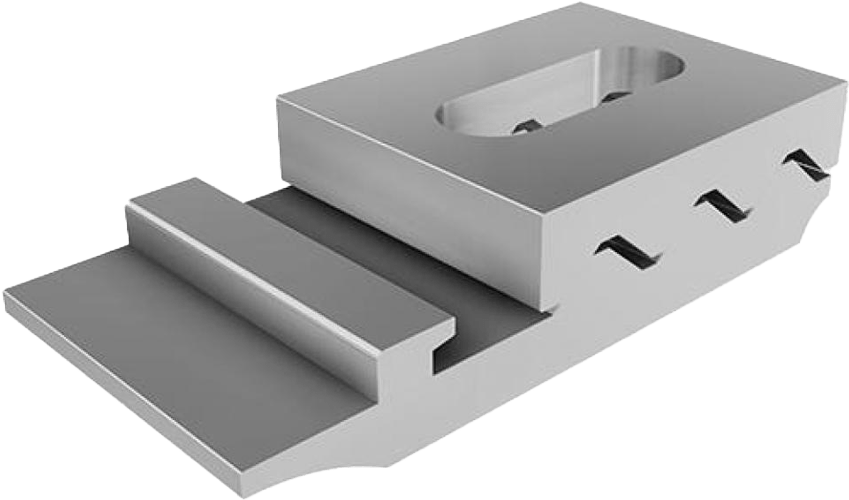

Stockschraubenaufsatz 2.0

Show product

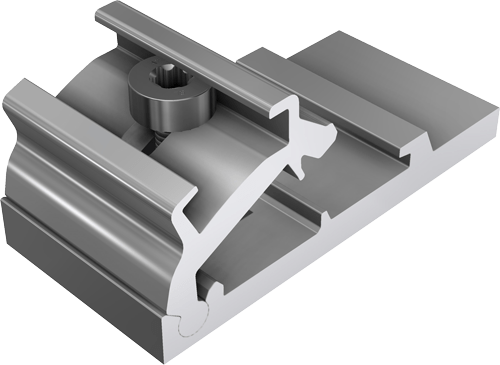

Kreuzverbinder

Show product
