Rafter 80

A lightweight and statically optimized aluminum rafter for a quick and easy installation of PV modules.

Eine Weide mit grünem Gras, auf der Alpakas unter einer Agri-PV-Anlage von SL Rack grasen.

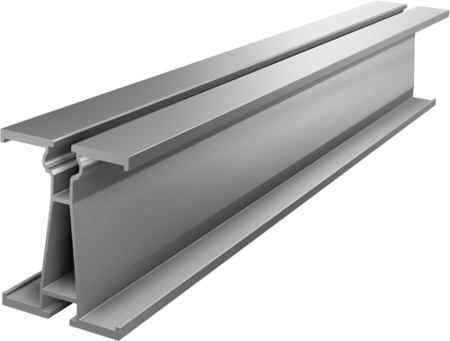

Rafter 80

Rafter 80 is made of high quality aluminum and is optimized for the requirements of modern PV mounting systems. Its structural design ensures maximum stability while minimizing material usage. The pre-fabricated design eliminates the need to drill additional holes, which greatly simplifies installation. A rafter clamp connects the rafter to the Z-Purlin, allowing for a quick and accurate installation. The lightweight design of the Rafter 80 makes it easy to transport and handle on site without compromising stability.

  • Rafter 80, item no. 1408-1000

Key facts

  • Click channel for easy installation of module clamps.
  • No drilling required.
  • Dimensions: Variable length, width 62mm, height 80mm
  • Material: Aluminum
  • Weight: 1.84 kg/m

Advantages

  • Quick and easy installation without drilling due to a precise design.
  • Lightweight construction facilitates transportation and handling.
  • High stability and load capacity through optimized statics.
  • Low maintenance due to durable, corrosion-resistant aluminum.
  • Flexible combination with various PV module types and substructures.
