Z-Purlin-Girder-Joint

Optimal terrain adaptation - tension-free installation even on difficult terrain with slopes up to 20°.

Z-Purlin-Girder-Joint

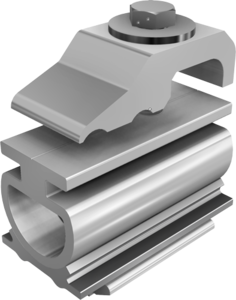

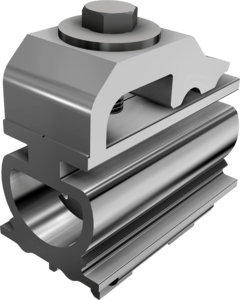

The Z-Purlin-Girder-Joint was specifically designed to enable terrain leveling for PV racking systems. It is mounted between girder and purlin and compensates for slopes from 5° to 20° in an east-west direction. This provides a stable, tension-free construction even on uneven ground. The sturdy aluminum design provides high strength and durability. The flexible joint allows for an accurate and secure alignment of the racks, making it much easier to install systems in difficult terrain. The joint provides a reliable solution for an efficient and durable PV installation.

  • Purlin-Girder-Joint incl. hardware, item no. 41202-01

Key facts

  • Joint to be installed between girder and purlin.
  • Compensates for slopes between 5° and 20° (east-west direction) Facilitates installation on uneven terrain.
  • Tension-free assembly of the racks.
  • Dimensions: Length 100 mm, width 54 mm, height 54 mm
  • Material: Aluminum
  • Weight: 0.7536 kg

Advantages

  • Reduces tension in the racking structure.
  • Enables installation on steep and uneven surfaces.
  • Faster and easier installation due to flexible joints.
  • High stability and durability due to aluminum construction.
  • Low maintenance solution minimizes follow-up costs.

Accessories

W-pile made of special plastic

Show product

W-pile made of steel

Show product

Z-Purlin

Show product

Rafter 80

Show Poduct

Rafter 100

Show Product

Solo-purlin mid clamp

Show prouct

Duo-purlin mid clamp

Show product

Z-Purlin Connector

Show product

Cap for Z-Purlin Clamp for cable protection

Show product

Module Holder for bifacial modules

Show Product
