Z-Purlin Connector

Z-Purlin Connector

Z-Purlin Connector

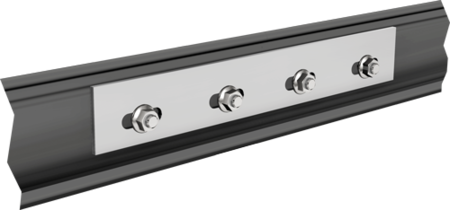

The Z-Purlin Connector is a critical element for securely and permanently connecting two steel purlins. Made of galvanized steel, it provides excellent corrosion protection and stability for ground mount photovoltaic systems. The connection is made in a simple and efficient way with four bolts. This allows for a fast and precise installation. With its high load-bearing capacity, the Z-Purlin Connector helps make large module arrays stable and secure. Available in two versions: SPFV 80 and SPFV 100, suitable for varying purlin sizes.

Steel purlin connector SPFV 80, item no. 82280-600
Steel purlin connector SPFV 100, item no. 82210-600

Keyfacts

Securely connects two steel purlins.
Mounted with four bolts for a quick and easy installation.
Suitable for large module arrays due to high stability.
Available in two sizes: SPFV 80 and SPFV 100.
Dimensions:
80: length 600 mm, width 70.6 mm, height 31.4 mm
100: length 600 mm, width 89.9 mm, height 32 mm
Material: Galvanized steel ZM430
Weight: 80 mm: 1.87 kg / 100 mm: 2.01 kg

Advantages

Quick and easy installation with pre-drilled holes and four bolts.
Increased stability for safe and durable PV racking.
Galvanized steel provides high corrosion resistance for a long service life.
Flexible application for varying purlin sizes.
