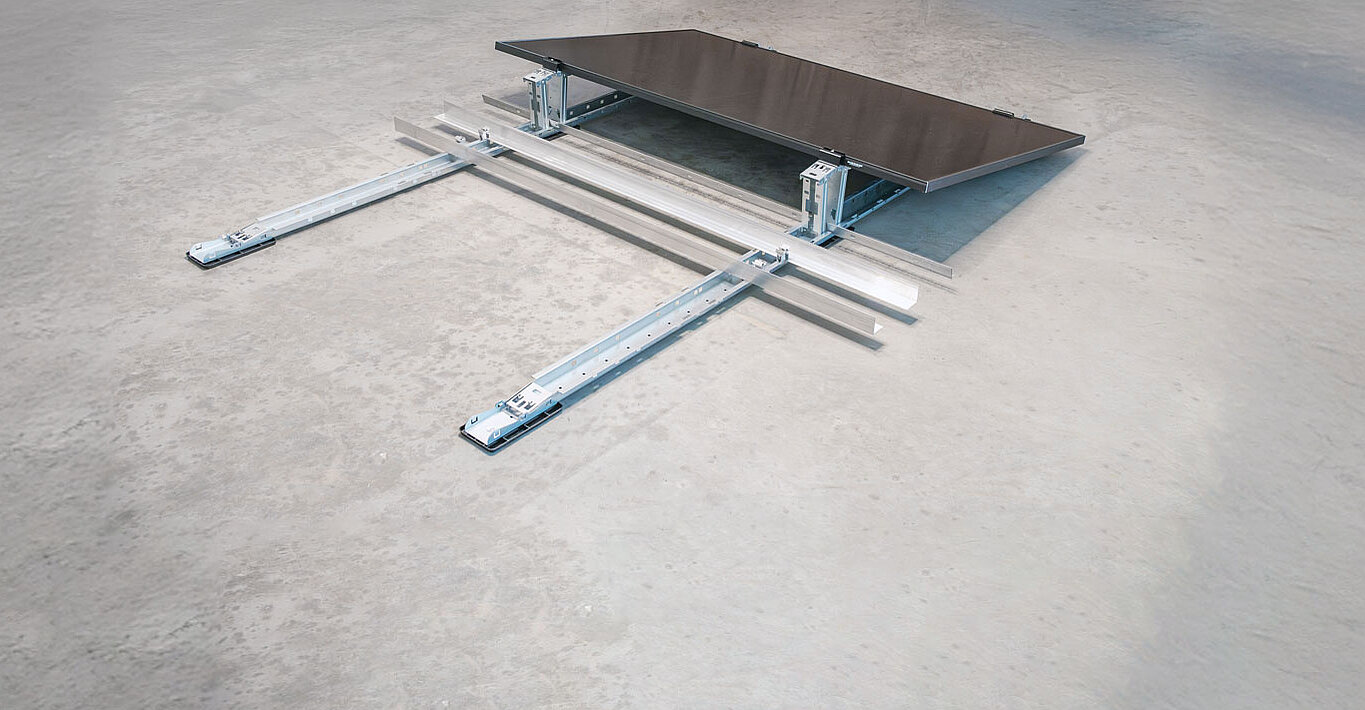

The Base Plate EPDM provides a reliable solution for optimum load distribution on flat roofs. It has a contact area of 200 x 200 mm and is made of aluminum sheet. Manufactured from high quality, UV-resistant EPDM material, it provides high stability and an increased coefficient of friction, which means less ballast is required. The aluminum Base Plate protects against corrosion and prolongs service life. As we do not use plasticizers, we are compatible with all common roofing membranes. The design allows the use of up to three additional Base Plates per rail, optimising load distribution. For an exact design, the coefficient of friction can be precisely determined using the FLA coefficient of friction measuring kit. In addition, an ergonomic installation in an upright position is convenient and safe. The Base Plate EPDM provides a long-lasting, safe and material-protecting solution for various roof types.

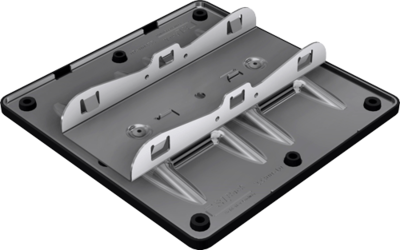

Fast Flat - Base Plate EPDM - 200x200 mm², item no. 22300-10

Keyfacts

UV-resistant and plasticiser free.
Up to three additional Base Plates can be installed per rail.
Ballast-optimizing thanks to higher coefficients of friction.
Dimensions: 200 x 200 mm
Material: Aluminum base plate, EPDM pad (carpet pad), ZM430 galvanised steel connector (mounting plate)
Weight: 0.58 kg

Advantages

Reduced ballast requirements and firm grip on all roof types as a result of optimum friction coefficients.
Durability and protection against corrosion due to UV-resistant material and aluminium base plate.
Protection of the roof membrane through the absence of plasticisers that could damage the membrane.
Convenience through an ergonomic assembly in an upright position.
