External Connector
for all RAILs

The fastest and easiest way to connect flat PV structures.

External Connector for all RAILs

The external connector is the simplest and quickest solution for rail connections; for RAIL 120, Rail 7 and Rail 15, an additional FLA connector is required at the top. With an overall height of only 26 mm, the connector is ideal for low-profile mounting and ensures a seamless integration into the PV system. Constructed from high quality aluminum, it is available in mill finish and black anodized, for an aesthetically pleasing look. The connector is compatible with all standard rails, making it universal and easy to store. It is easy to install from the top using only one tool (Torx 40). This greatly simplifies and speeds up the installation process. The external connector is completely pre-assembled and has the approval from the General Building Authority as well as a tested lightning current carrying capacity. This ensures maximum safety and reliability.

  • External Connector RAIL 3.0, item no. 81100-00

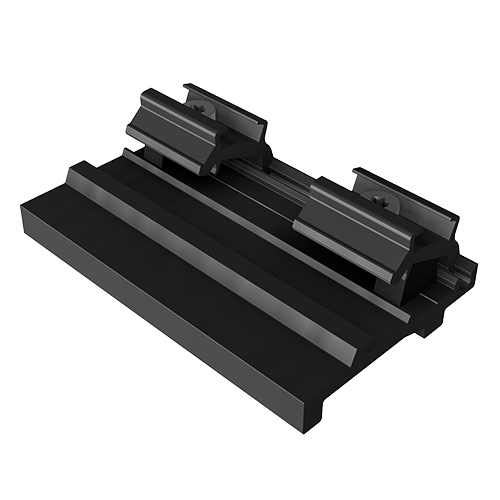

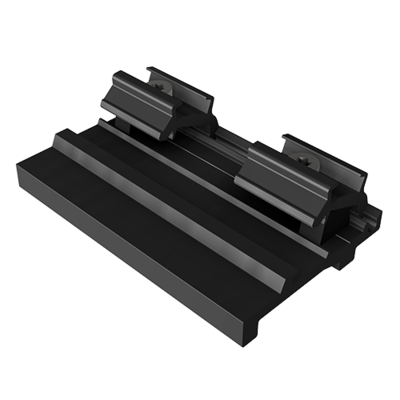

  • External Connector RAIL 3.0, black anodized, item no. 86100-00

Key facts

  • Connection of profiles.
  • Low height of only 26 mm for flat structures.
  • Compatible with all SL Rack RAILs.
  • Installed from the top with only one tool.
  • Completely pre-assembled.
  • General Building Authority approved and tested for lightning current carrying capacity.
  • Can be used universally with the same static characteristics as a rail.
  • Dimensions: Length 130 mm, width 84 mm, height 26 mm
  • Material: Aluminum
  • Colour: Mill finish or black anodized
  • Weight: 0.2851 kg

Advantages

  • Quick and easy installation with pre-assembled components and the use of only one tool.
  • Reduced warehousing due to universal compatibility with all SL Rack RAILs.
  • Aesthetically pleasing options available in mill finish and black anodized.
  • Increased safety due to tested lightning current carrying capacity and approval from the General Building Authority.
  • Compact height of only 26 mm, ideal for flat structures and applications such as the SL Energy Wall.

Accessories

Mid Clamps and End Clamps Vario

Show product

End Clamp

Show product

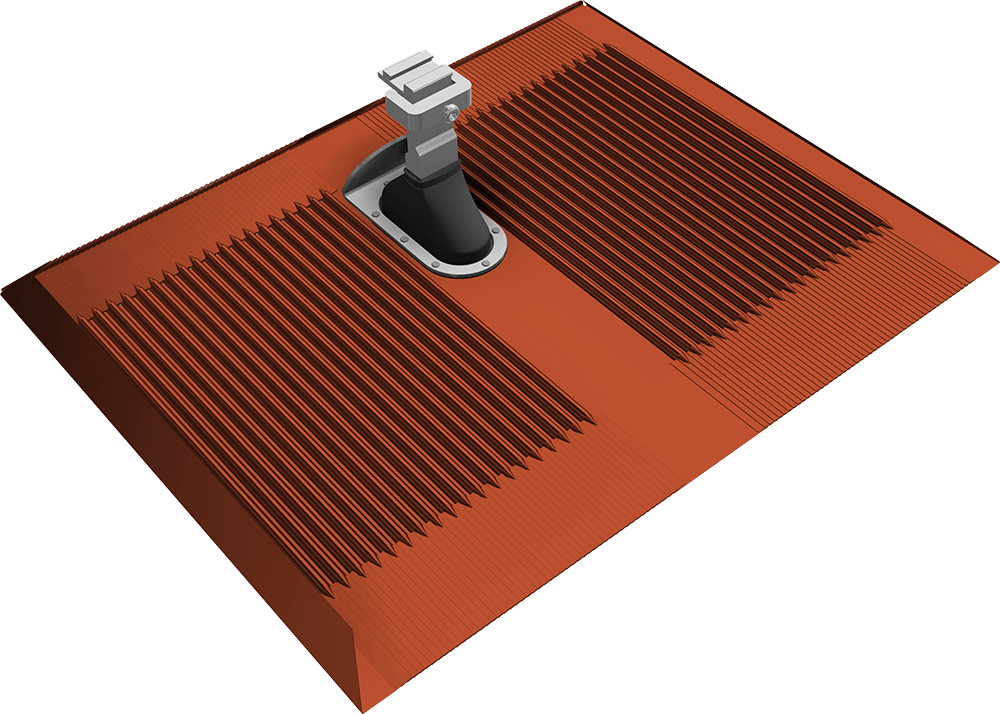

Alpha-Plate

Show product

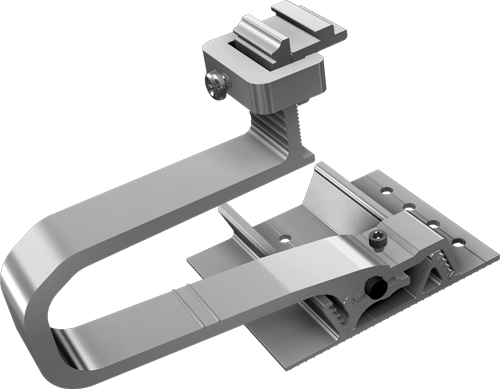

Roof Hook 3D SL Alu
