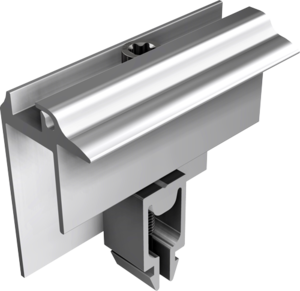

End Clamps 30-50

The end clamp for PV modules is the ideal solution for a safe and easy installation of module frames with a height of 30 to 50 mm. It is specially designed for easy installation by mounting from the top with only one tool (Torx 40). With a clamping length of 70 mm, it guarantees a stable and reliable attachment of the modules to the rails. All clamps are available in mill finish or black anodized to meet various visual requirements and without the need for additional grounding. Their ease of use and universal compatibility make them the perfect choice for a wide range of installation requirements. The end clamp is a versatile and aesthetically pleasing solution for secure module mounting that will impress both professional installers and end users.

End clamp 30-32 mm, item no. 91113-31
End clamp 30-32 mm, black anodized, item no. 96113-31
End clamp 33-35 mm, item. no. 91113-34
End clamp 33-35 mm, black anodized, item no. 96113-34
End clamp 36-38 mm, item no. 91113-37
End clamp 36-38 mm, black anodized, item no. 96113-37

End clamp 40-42 mm, item no. 91113-41
End clamp 40-42 mm, black anodized, item no. 96113-41
End clamp 45-46 mm, item no. 91113-45
End clamp 45-46 mm, black anodized, item no. 96113-45
End clamp 50 mm, item no. 91113-50
End clamp 50 mm, black anodized, item no. 96113-50

Key facts

End clamp for frame heights from 30 to 50 mm.
Easy to mount from the top with Torx 40.
70 mm clamp length for stable mounting.
Compatible with SL rack mounting systems.
Dimensions: Length 70 mm, width 34 mm, height variable between 30 and 50 mm
Material: Aluminium
Colour: Mill finish and black anodized

Advantages

Quick and easy installation with only one tool.
Secure attachment and stability of modules with 70 mm clamp length.
Aesthetic installation due to the elegant black finish.
Long service life due to corrosion-resistant materials
