Seam Clamp ROMA RD horizontal

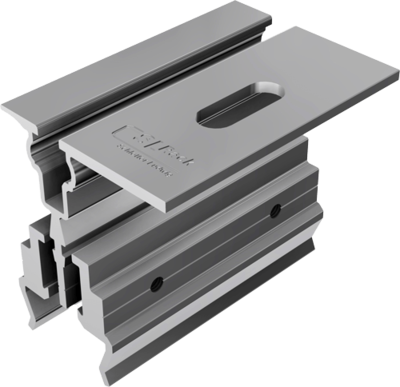

The seam clamp ROMA RD is the ideal solution for rail-less, horizontal mounting of solar modules on the RD sandwich panel roof from Roma. Measuring 90 mm long, 40 mm wide and 68 mm high, it is made of high quality aluminum and the bolts are made of sturdy stainless steel. By adding a Cross Connector, the modules can also be installed vertically with rails, resulting in a wide range of applications. The clamp allows easy and secure mounting of the PV modules without damaging the roof cladding. Installation is quick and easy as only one tool is required. The latest generation also offers the option of a cross-rail system by attaching a stainless steel screw in the bottom screw channel, providing additional stability and flexibility.

• ROMA RD for Roma sandwich panels, horizontal, item no. 11401-06
