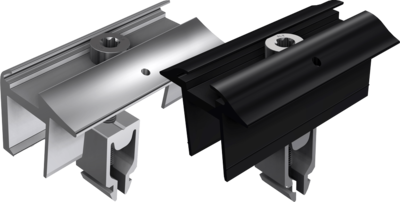

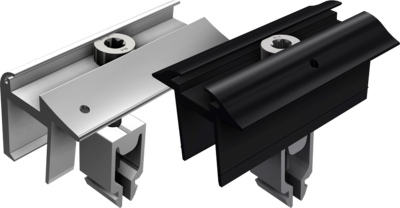

Mid Clamps and End Clamps

The module clamps are the ideal solution for flexible mounting of PV modules on RAILs with frame heights from 28 to 45 mm. Due to their universal design, the clamps can be mounted both vertically and horizontally by simply lifting and rotating them by 90°. The integrated driver supports a quick and convenient installation and lifts the clamp when loosening it. In addition, the clamps can be easily moved in the SL Rack RAIL channel for a flexible adjustment. The ease of uninstalling clamps from the RAIL adds further flexibility. Pre-assembled components and compatibility with all RAIL systems simplify warehousing. The clamps can  be tightened from the top with only one tool (Torx 40). They provide secure fastening with a clamp length of 70 mm and a clamp depth of 11 mm. Improved geometry prevents the modules from moving. The integrated grounding pin makes potential equalization and system grounding easy. Optionally the clamps are available without grounding pin. All clamps are offered in mill finish or black anodized aluminum to meet a variety of optical requirements without the need for additional grounding.
