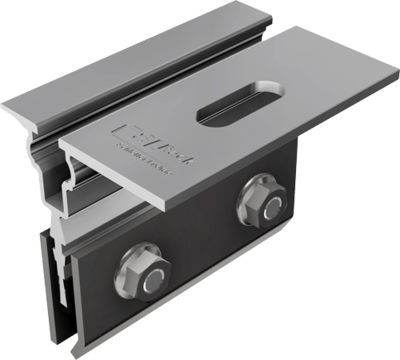

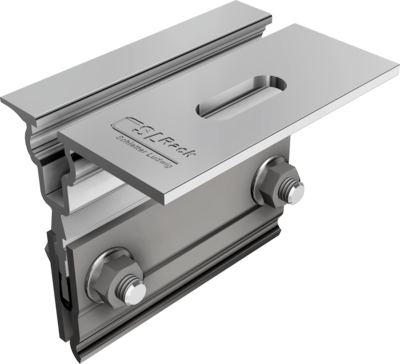

Seam Clamp 2.0 - DFalzCu
suitable for copper roofs

The seam clamp 2.0 DFalzCu is specially designed for the safe and easy installation of solar modules on double standing seam roofs made of copper. It enables rail-less, horizontal mounting without damaging the roof cladding and is therefore ideal for PV systems on copper roofs and allows a maximum rail length of 4 m. The clamp is 90 mm long, 40 mm wide and 70 mm high. It consists of a rugged aluminum body and stainless steel jaws to provide galvanic separation and prevent corrosion. Fastening is easy with stainless steel nuts and bolts. The latest generation of the seam clamp DFalzCu can also be installed in a cross-rail system by simply using a bolt in the lower screw channel. It protects against mechanical stress and maintains the integrity of the roof cladding, ensuring long-term safety and stability. The material separation between aluminum and copper also prevents the redox effect.

• Seam Clamp 2.0 - DFalzCu for copper double-fold standing seams, item no. 11402-03
