Metal roof panel SL Alu

 Quickly installed, secure and durable.

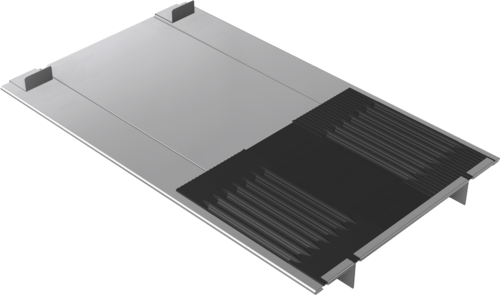

Metal roof panel SL Alu

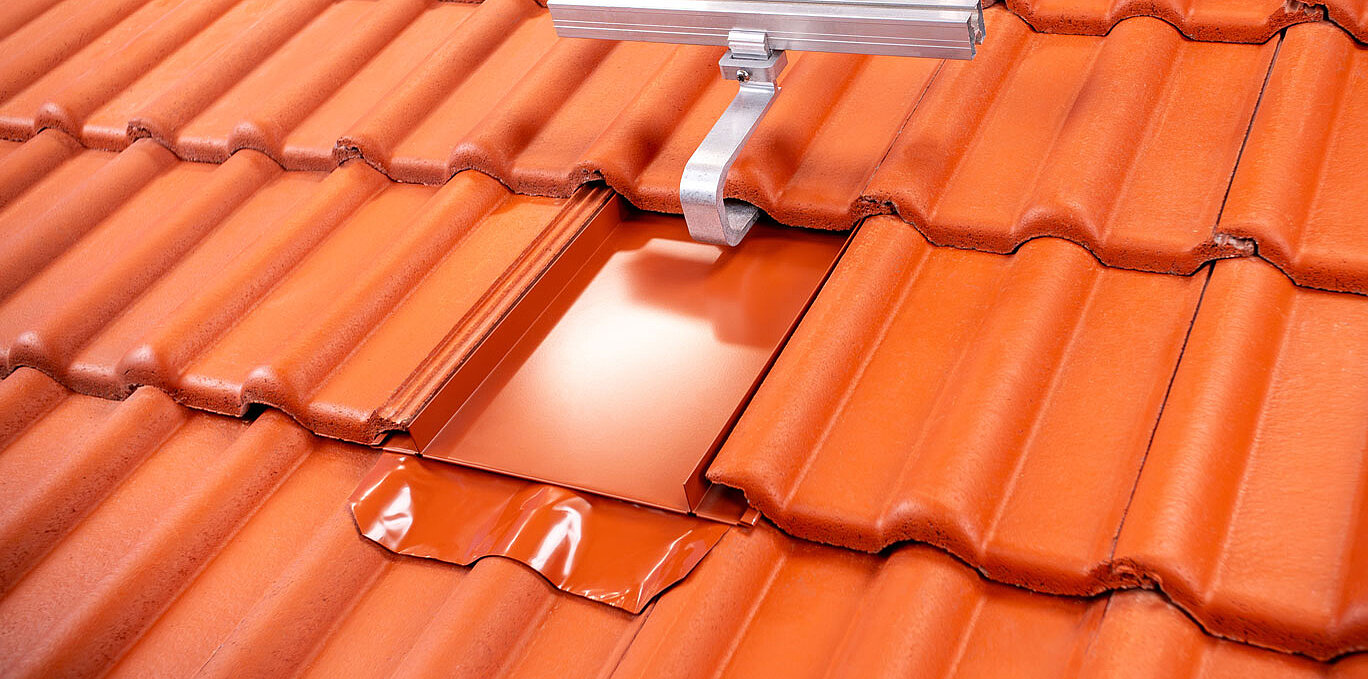

The SL Aluminum Roof Tile is a contemporary and efficient solution for the installation of PV systems on pitched roofs. Made of high quality aluminum, the tile is quick and easy to install - no tools nor screws required, as it is simply hung in place. It is available in three sizes (S, M and L) to fit most roof tile widths. An aluminum skirt, which flexibly conforms to the shape of the tile, provides additional protection and ensures a long system life. An integrated foam wedge protects against driving rain and provides a reliable seal. The SL Aluminum Roof Tile is compatible with all SL roof hooks and is available in brick red and anthracite. Installation is quick and easy, saving time and money.

  • SL Aluminum Roof Tile S brick red (RAL 8004), item no. 11540-00
  • SL Aluminum Roof Tile S anthracite (RAL 7016), item no. 11540-01
  • SL Aluminum Roof Tile M brick red (RAL 8004), item no. 11541-00
  • SL Aluminum Roof Tile M anthracite (RAL 7016), item no. 11541-01
  • SL Aluminum Roof Tile L brick red (RAL 8004), item no. 11542-00
  • SL Aluminum Roof Tile L anthracite (RAL 7016), item no. 11542-01

Key facts

  • Available in S, M and L to fit various tile widths.
  • Built-in foam wedge against driving rain.
  • Compatible with all SL roof hooks.
  • Dimensions:
    S: Length 440 mm, width 265 mm, height 30 mm
    M: Length 440 mm, width 315 mm, height 30 mm
    L: Length 440 mm, width 365 mm, height 30 mm
  • Material: Aluminium
  • Colour: Brick red (RAL 8004) and anthracite (RAL 7016)
  • Weight: 0.430 kg / 0.505 kg / 0.535 kg

Advantages

  • Quick and economical installation for reduced labor costs.
  • Optimal resistance to weathering and driving rain.
  • Flexible to accommodate various tile widths.
