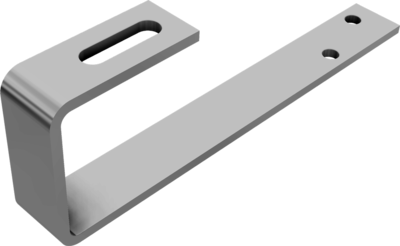

Roof Hook SL A2-Slate

The roof hook SL A2-Slate is made of high quality A2 stainless steel and is the ideal solution for mounting PV systems on slate roofs. With its compact dimensions (length 235 mm, width 30 mm, height 75 mm), it is ideally suited to the requirements of modern slate roofs. The slotted hole (M10) allows the rails to be mounted directly both horizontally or vertically, which greatly increases installation flexibility. The slim design of the roof hook reduces warhousing and simplifies installation. Bolts and nuts are available as an option. The hook allows for both, a single- or cross-rail installation and is compatible with any standard rail. Its seamless design provides increased stability and durability, especially on slate roofs.

Roof Hook SL A2-Slate, item no. 13107-00

Key facts

Specially developed for slate roofs.
Slotted hole (M10) for flexible horizontal and vertical rail mounting.
Suitable for any type of rail.
Can be mounted as a single- or cross-rail system.
Dimensions: Length 235 mm, width 30 mm, height 75 mm
Material: Stainless steel
Weight: 0.3985 kg

Advantages

Optimal solution for slate roofs due to its specially developed design.
Flexibility due to horizontal and vertical alignment options during installation.
Slim and lightweight design simplifies handling and warehousing.
Compatibe with any common rail.
Quick and easy installation.
