RAIL 15 top and bottom

The RAIL 15 profiles are the perfect solution for mounting PV modules on rooftops, especially when an increased pitch of 15° is required in order to maximize energy yields. Made of rugged aluminum, the rails provide a durable and corrosion-resistant mounting solution. They are available in mill finish. This allows for aesthetic integration into the roof design. The upper rail channel is deep enough to accommodate module clamps with frame heights from 30-50 mm, while the lower channel is optimized for retaining claws and M10 bolts. RAIL 15 profiles are available in two sizes: 40 x 72 mm at the bottom and 40 x 288 mm at the top, each 4750 mm long. They are compatible with roof hooks and Trapez 1-5, as well as with all common mounting systems on the market. The additional tilt improves module orientation and positioning, especially on unfavorably pitched roofs, and results in a significantly higher yield.

• RAIL 15 bottom 4750 mm, item no. 81115-4750

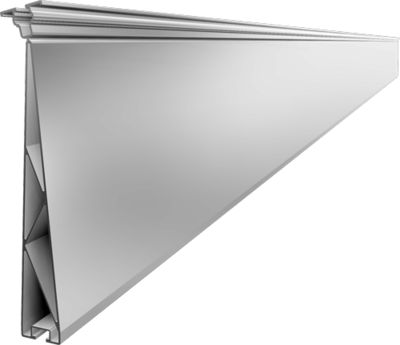

• RAIL 15 top      4750 mm, item no. 81114-4750
