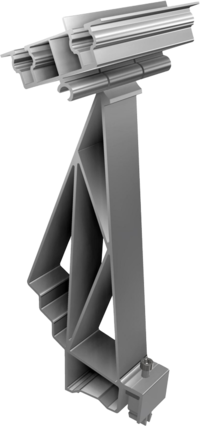

FLA Holder Top

The FLA Holder Top is the ideal solution for the secure and flexible mounting of PV modules. It is suitable for both south and east-west systems from 10 - 15° and with its pivot joint allows tension-free module mounting. Bolts are conveniently tightened from the top with only one tool (Torx 40), minimizing installation time. Modules can be clamped either on the long side or on the corners. The Holder also provides a simple means of attaching 40 mm, 60 mm and 80 mm ballast blocks. Its two rail channels ensure secure mounting and compensate for minor installation errors. The FLA Holder can be mounted on any SL Rack RAIL and provides a secure connection to the bottom rail. It provides maximum flexibility and efficiency in PV module installation.

• FLA Holder Top 10°, item no. 21113-10
• FLA Holder Top 15°, item no. 21113-15
