Hilti HIT-HY 270

Hilti HIT-HY 270

The Ultimate Performance Class hybrid injection mortar is a versatile solution for demanding fastenings and retrofits in hollow and solid masonry. It is suitable for a variety of substrates, including concrete (such as hollow-core planks and lightweight concrete), as well as masonry made of hollow, perforated, and solid concrete blocks, in both wet and dry conditions. With ETA and fire protection approvals, the mortar meets the highest safety standards. Typical applications include fixing structural steel and glass railings, as well as providing heavy-duty support for fixtures such as awnings and insulating materials. Additionally, the mortar enables cost-effective seismic retrofitting and static reinforcement of old masonry walls, making it ideal for renovating and refurbishing existing buildings.

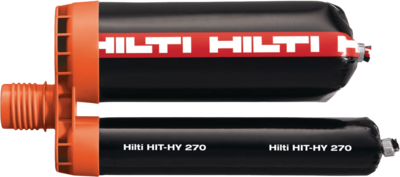

  • Hilti HIT-HY 270, Item no. 97901-01

Key facts

Chemical injection fastening for the most common types of base materials:

  • Hollow and solid clay bricks, calcium silicate bricks, normal and light weight concrete blocks:
  • Two-component hybrid mortar
  • Versatile and convenient handling with HDE dispenser
  • Flexible setting depth and fastening thickness
  • Small edge distance and anchor spacing
  • Suitable for overhead fastenings
  • ETA approved for seismic loads in solid clay bricks (Rosso Vivo, Rosso Classico)

Advantages

  • ETA approval for seismic loading of masonry and the new TR053, as well as technical data, provide significantly more flexibility in designing steel-masonry connections.
  • Easier, standard-compliant design: Fasteners in masonry can be designed more quickly and easily with the PROFIS Engineering Suite, even under seismic load.
  • Compatible with HIT-SC perforated sleeves for use in hollow substrates: Offering more flexibility with multiple sleeve combinations and minimizing mortar waste with more accurate dosing.
  • Site test service for anchor connections: The Hilti site test service for anchor connections helps check connections for tensile and shear forces in horizontal and vertical directions.

Accessories

Facade System Bottom, Mid and Top

Show product

Facade System Cover

Show product

Facade System End Cap

Show product

Facade Fastener

Show product

Außenverbinder für alle RAILs

Show product

Stockschraubenaufsatz 2.0

Show product

Kreuzverbinder

Show product

Hilti HUS4-AF

Show product

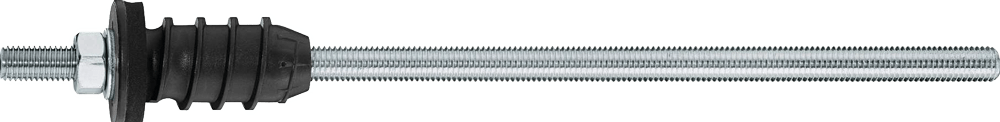

Thermal anchor Hilti HIK-T

Show product

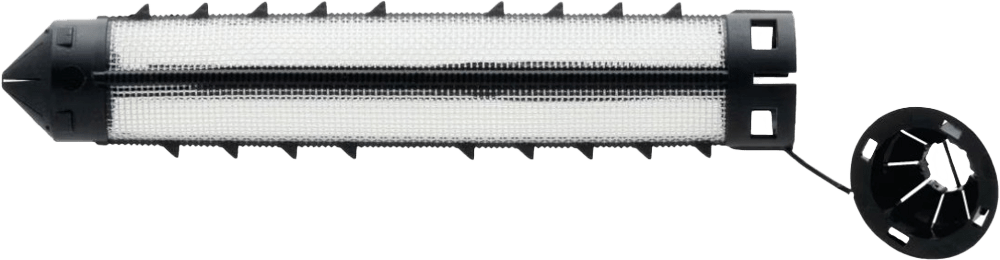

Perforated sleeve HIT-SC

Show product

Hammer drill bit TE-CX

Show product
