Lightning Protection Clamp for PV Systems – DIN EN 62561 Certified

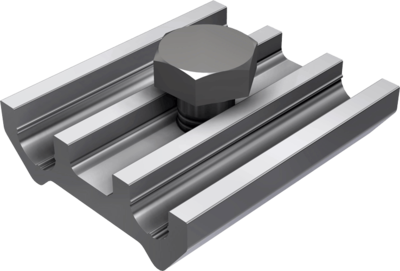

Lightning Protection Clamp bottom

Lightning Protection Clamp bottom

The lightning protection clamp provides a reliable solution for lightning protection and equipotential bonding and can be used universally for all common profile types. It accepts both 8 mm and 10 mm round wires and is certified to DIN EN 62561. The Lightning Protection Clamp bottom is completely pre-assembled and supplied with a hex screw and nut. The flexible mounting of the clamp allows the unobtrusive mounting under the modules or the subsequent mounting on the right or left side. The Lightning Protection Clamp offers tested lightning current carrying possibility and complies with all relevant electrical standards.

Lightning Protection Clamp bottom, item no. 91520-00

Key facts

Fits any SL Rack rail.
Completely pre-assembled for a quick installation.
Compatible with 8mm and 10mm round wire.
Certified lightning current carrying capacity.
Includes M10 hex bolt and nut.
Dimensions:
Bottom: Length 52 mm, width 50 mm, height 30/23 mm
Material: Aluminum, M6 stainless steel bolt

Advantages

Easy installation with pre-assembled clamp.
Flexibility in positioning - clamp can be inserted into the bottom screw channel.
Compatible with all standard lightning protection wires (8 mm and 10 mm).
High level of safety with certification and tested lightning current carrying capacity.
