Hanger Bolt Adaptor 2.0

Universal and sturdy mounting of rails on M10 and M12 hanger bolts - simple and secure.

Hanger Bolt Adaptor 2.0

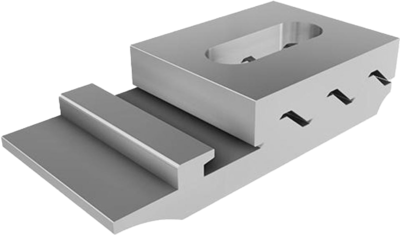

The Hanger Bolt Attachment 2.0 is a versatile solution for securely mounting all SL-Rack RAILs to M10 and M12 (Facade only M12) hanger bolts. Designed for universal mounting of SL-Rack RAILs and other common rails with a 10.5mm bottom groove, this attachment provides a high level of precision and stability with its ribbed profile on the top and bottom of the attachment. Supplied as a set with M10x200, M10x300, M12x200 or M12x300 hanger bolts, it is made from high quality aluminum and is UV and corrosion resistant. The slotted hole in the attachment simplifies the installation, as it allows for additional adjustment in case the hanger bolt was not positioned exactly. The Hanger Bolt Attachment 2.0 is ideal for a secure and flexible installation on a variety of roofs, has approval from the General Building Authority and ensures a permanently stable connection.

  • Hanger Bolt Adaptor 2.0 M10, item no. 11302-12
  • Hanger Bolt Adaptor 2.0 M12, item no. 11302-10

Key facts

  • Universal mounting for RAILs and common profiles with a 10.5 mm groove.
  • M10 and M12 hanger bolts. (Facade only M12)
  • Dimensions: Length 90 mm, width 45 mm, height 20 mm
  • Material: Aluminium
  • Weight: M10 0.1424 kg, M12 0.137 kg

Advantages

  • Versatile applications due to universal mounting and slotted hole design.
  • High stability and precise positioning ensure a safe installation.
  • Durability with UV and corrosion resistance.
  • Easy installation with compatible hanger bolts in various lengths.
