Snow guard kit
Larger area, more grip - the directly-mounted snow guard kit is space-saving and increases safety.
Larger area, more grip - the directly-mounted snow guard kit is space-saving and increases safety.

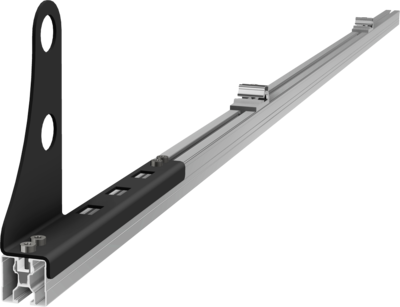

The snow guard kit consists of a snow guard bracket, 2400 mm of RAIL 40 and 2 Cross Connectors. The snow guard bracket is mounted directly into the RAIL without the need for additional parts. This leaves more roof area available for modules. Made of powder-coated aluminum, it is durable and weather-resistant. With standard dimensions of 370 x 222 x 43.5 mm and a weight of only 0.390 kg, the snow guard bracket is easy to handle. Its 20 cm height above the modules ensures standard compliance. Additionally, a lower tube is located below the module surface to collect snow. The recess for the module clamp allows it to be placed particulary low, allowing maximum use of the roof area. The snow guard bracket is available in brick red (RAL 8004) and anthracite (RAL 7016), blending harmoniously into the roof's appearance. It is compatible with all SL Rack RAILs. The snow guard set can be retrofitted to any PV system with horizontally installed rails. With the Cross Connectors, installation is easy and compatible with any RAIL.
The snow guard kit consists of a snow guard bracket, 2400 mm of RAIL 40 and 2 Cross Connectors.
