C-pile

C-pile - a strong basis for the SL Agri Wall

C-pile

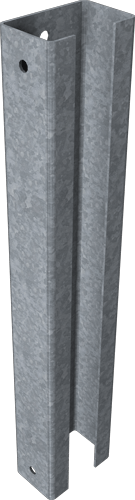

The C110/C130 C-pile is a load-bearing component designed for vertical agrivoltaic systems, such as the SL Agri Wall. With its optimised C-shape, it is highly stable yet light in weight. Piles are available in two widths (110 mm and 130 mm) and variable lengths, allowing flexible adaptation to project requirements. The high extension values reduce foundation requirements, thereby reducing installation time and material costs. Varying zinc coating thicknesses are available for additional corrosion protection. The profile is made of 3 mm thick ZM430 galvanised steel. Its high-quality workmanship ensures a long service life, even under demanding environmental conditions. This makes the pile ideal for agricultural land, where reliable anchoring is crucial.

  • C-pile C110, item no. 82981
  • C-pile C130, item no. 82985

Keyfacts

  • Extra sturdy construction with high pull-out force.
  • Optimized C-shape for low weight and maximum load capacity.
  • Two widths (110/130 mm) for flexible applications.
  • Variable profile lengths for any project.
  • Choice of zinc coating thicknesses for durable corrosion protection.
  • Material: ZM430 galvanized steel, 3 mm thick
  • Dimensions: Variable length, width 110/130 mm, height 70 mm
  • Weight: Approx. 0.689 kg

Advantages

  • High stability despite minimal use of materials.
  • Quick and easy installation.
  • Flexible use with variable dimensions and profiles.
  • Corrosion-resistant for long-term use.
  • Reduction in foundation costs due to high pull-out values.

Accessories

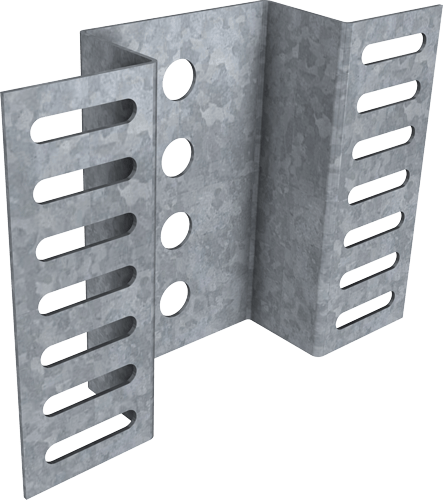

Pile Bracket

Show product
