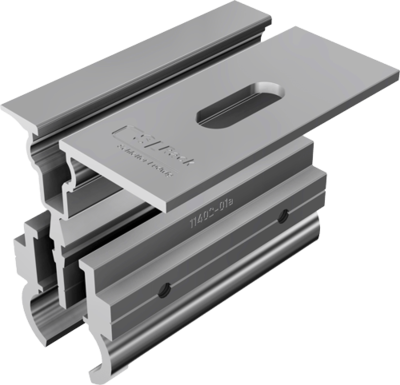

Seam Clamp 2.0 - 18 mm

The seam Clamp 2.0 - 18 mm is the ideal solution for rail-less, horizontal mounting of solar modules on round seam roofs with a diameter of 18 mm. It allows direct mounting of modules without additional rails. For vertical module mounting, a Cross Connector can be used to add rails. The seam clamp is made of high quality aluminum and fastened with stainless steel bolts. Installation is quick and easy using only one tool (Torx 40). The latest generation can also be mounted with a stainless steel bolt in the lower screw channel, increasing the flexibility and adaptability of the solution. The clamp has the approval of the General Building Authority, which provides additional safety during installation. The compact design with 90 mm length, 40 mm width and 71 mm height enables a stable and aesthetic installation.

• Seam Clamp 2.0 - 18 mm  for round seam roofs Ø 18 mm, horizontal, item no. 11402-01
