Laminate Clamps

Sturdy and reliable, laminate clamps make frameless PV module installation safe and easy!

[Translate to English:] Haus mit Photovoltaik-Anlage auf Dach im Abendrot

Laminate Clamps

Laminate clamps are specially designed to securely mount frameless thin-film modules from 3 to 20 mm thickness. They feature a long clamping length of 70 mm and a ribbed EPDM rubber that provides a stable and gentle attachment. The clamps are pre-assembled, fit all SL-Rack rails and can be conveniently mounted from the top, making installation much easier. The use of high quality aluminum and EPDM rubber ensure a long service life and maximum stability even under demanding conditions. The laminate clamps provide a flexible and effective solution for securely mounting frameless photovoltaic modules and are available in mid and end clamp versions.

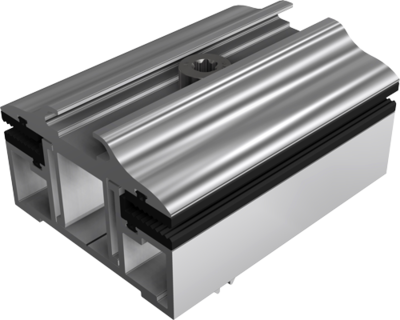

  • Laminate mid clamp Vario 2.0, item no. 91603-01
  • Laminate end clamp Vario 2.0, item no. 91603-02

Key facts

  • Suitable for frameless thin-film modules, module thickness 3-20 mm, glass recess 11-15 mm.
  • Clamp length of 80 mm ensures secure mounting.
  • Available as mid and end clamps.
  • Corrugated EPDM rubber for non-slip grip.
  • Pre-assembled and bolted from the top.
  • Dimensions:
    Mid clamp: Length 80 mm, width 60 mm, height 37 mm
    End clamp: Length 80 mm, width 44 mm, height 37 mm
  • Material: Aluminium
  • Weight: Mid clamp 0.2012 kg, end clamp 0.1414 kg

Advantages

  • Pre-assembled components for a quick and easy installation.
  • Convenient mounting from the top minimizes installation time.
  • Reliable clamping of frameless modules due to extended clamping range and EPDM rubber.
  • Universal use with all SL Rack systems.
